MINI LORDER 380

 Mini Loader LXHY380

Machine Load Capacity :400 Kg

Speed: 0-4 km/hr

Engine : B&S 3864  V-Twin ,

Max Power:18.2KW/3600RPM

Max Torque:45.5N.M/2800RPM

Engine Fuel: Petrol

Fuel Tank Volume :30 L

Starter: Key start

Battery:12v 36Ah Maintenance Free

Air Filter: B&S comes with it

Hydraulic Valve : HC Control Valve

Hydraulic Pump: G5 Pump 21.6 L/min, 18 MPa/3000rpm

Hydraulic Oil Tank : 30 L

Hydraulic Oil Cooler: Standard

Hydraulic Connections: Spanish brand Flat Faced G1/2, G3/8 Quick Connects(can choose Italian DNP brand, need +¥200)

Tracks :Heavy Duty Rubber Construction

Machine Weight: ~880 kg

Machine Dimensions:2285 mm (L) x 1090 mm(W) x 1270 mm (H) Max.

Dump Height : 1480 mm

Add to wishlist 2Add to compare

Description

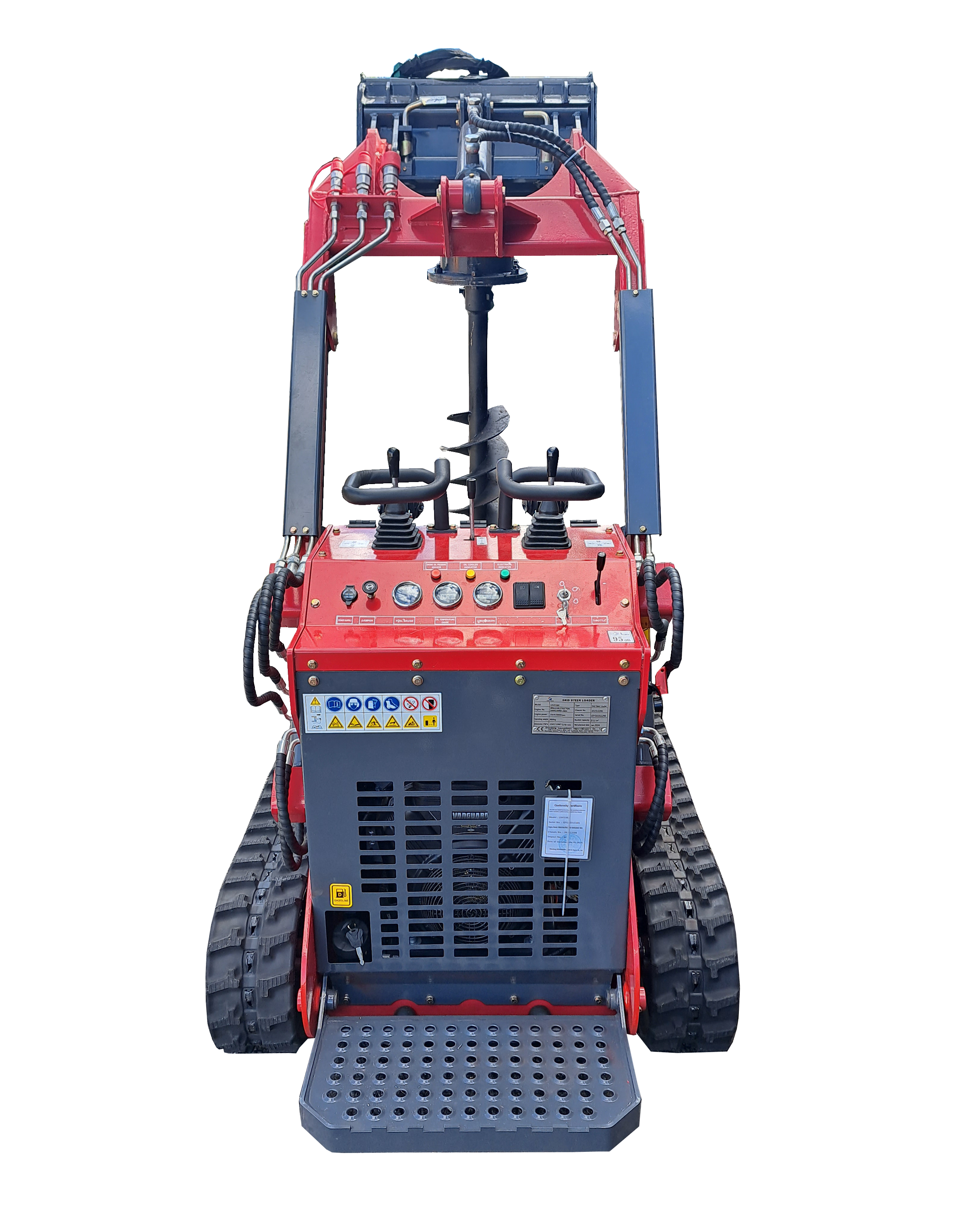

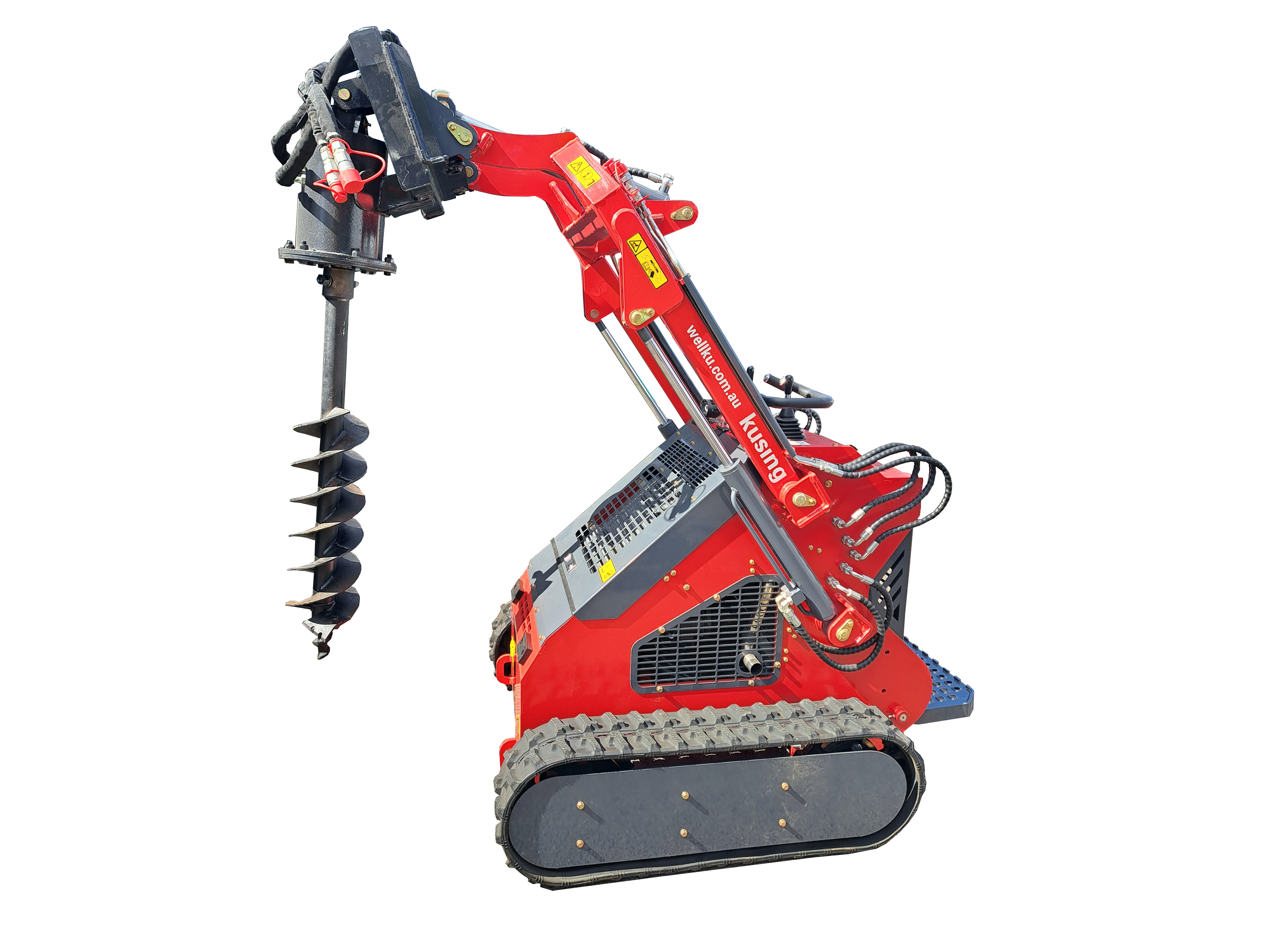

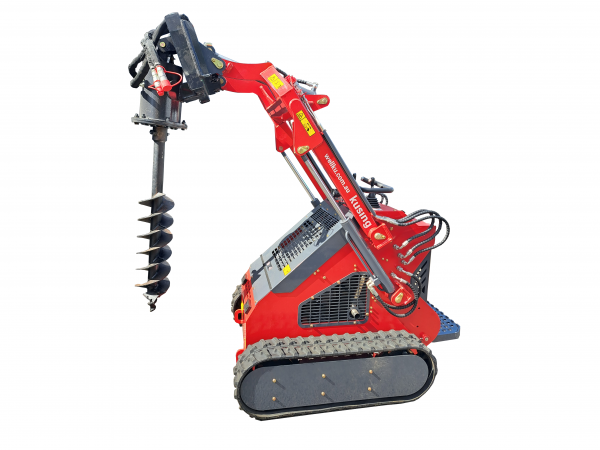

       Mini Loader

Item LXHY380
                         With Rubber Track
Metric U.S.
Max working height 2100 mm 82.7inch
Max pin height 1880 mm 74.01 inch
Max Dumping height 1480mm 58.26 inch
Max Dumping distance 430 mm 16.92 inch
Max Dumping Angle 30° 30°
Rollback of bucket on ground 25° 25°
Departure angle 27° 27°
Total height 1270mm 50 inch
Ground clearance 110 mm 4.33inch
Wheel base 760 mm 29.92inch
Overall length without bucket 1782mm 70.15 inch
Total width 810mm 31.88inch
Bucket width 1090 mm 42.91 inch
Total length with bucket 2285 mm 89.96 inch
Turn radius forward turning 1300 mm 51.18inch
overall length  without the bucket after  folding the pedal 1570 mm 61.81 inch
Engine
Rated Power (KW) 18.2KW(23HP)
Rotating speed (rpm) 3600
Noise (Db) ≤95
Hydraulic System
Pressure (Mpa) 17
Working Time (s)
Raise 4
Dump 1.3
Lower 3.2
Operating Load 280 Kg 617 Lb
Bucket Capacity 0.13 m³ 4.59 ft³
Max Lifting Force 458Kg 1009Lb
Travel Speed 0-5.5Km/h 3.5 mlie/h
Operating Weight 880 Kg 1940 Lb
