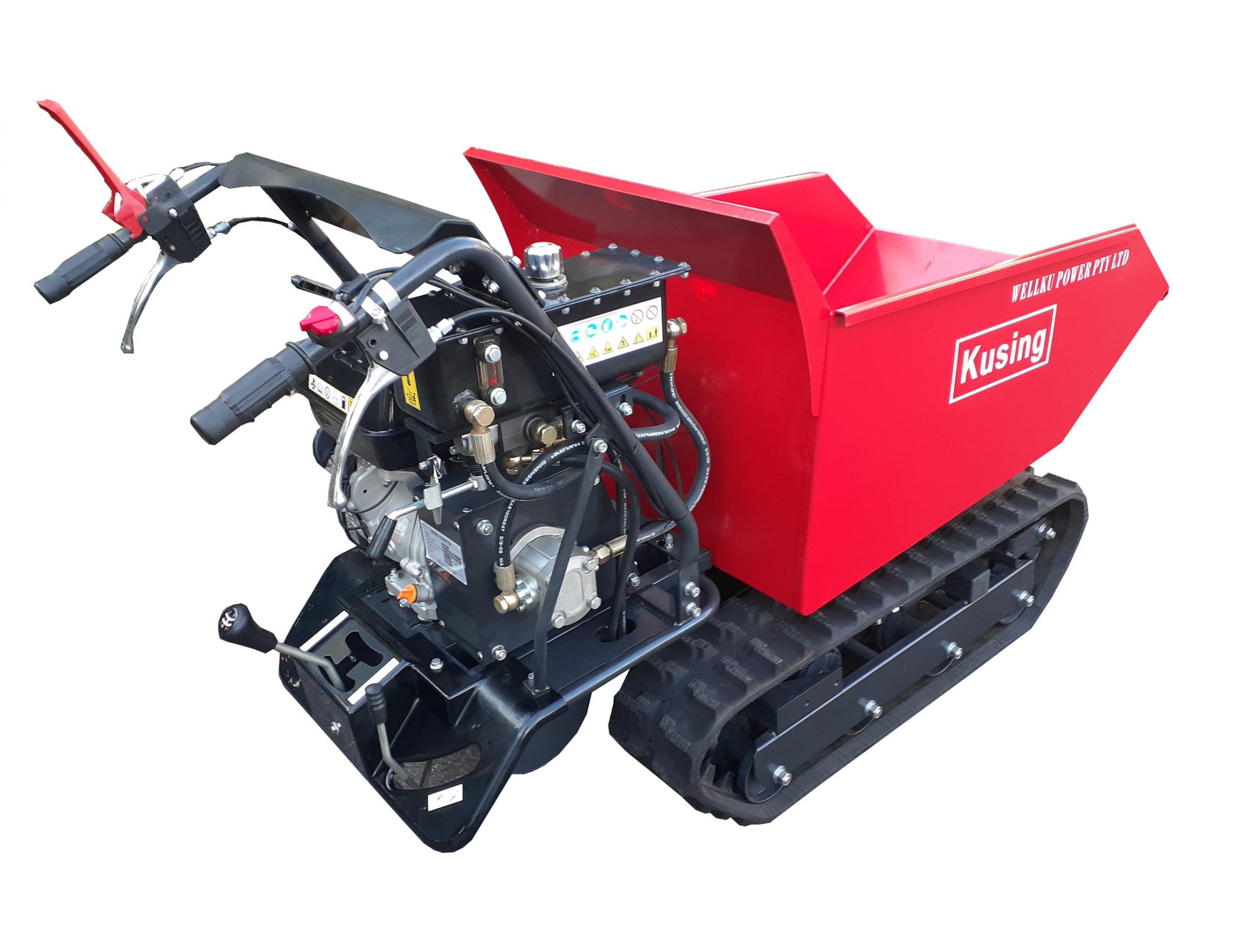

Mini Dumper 750DB
Transmission gears 3 x Fwd & 1x Rev(High/Low Range)
Centrifugal clutch steering.
Hydraulic tipping operation
Heavy duty bin
● Tracks made from heavy duty rubber for safe use on paved
surfaces.
Ground clearance 11Omm
Turning distance 82cm
● Maximum working pressure 200BAR
Colour #RAL3020
Description
Hydrualic Mini Dumper 500KGS 6 Speed
Model No. 750DB
Engine Make Lancin OHV
Engine Displacement :302cc/10HP
Engine Type Single Cylinder 4 Stroke Air Cooled
Fuel Tank Capacity 10 Litres
laximum Carry Weight 500kg/30%gradient 375kg
Maximum Speed 5km/hour
Start System Recoil
Fuel Consumption Est. 1.5L/hr
Engine Oil Specification 10W/30 Winter-10W/40 Summer
Engine Oil Capacity 2 Litres
/draulic Oil Specification ISO 46
Hydraulic Oil Capacity 5-6 Litres
Fuel Specification ULP 91
Noise Level 93 DBA
Track Width 180mm
Bin Dimensions 1000Lx700Wx 450Hmm
Dimensions 1630Lx750Wx970Hmm
Shipping Dimensions 1650Lx750Wx1110Hmm
Weight 320kg
Shipping Weight 350kg
